Morph 3 from Smok or Smoktech.

The Smok Morph 3 kit is a dual 18650 battery 230w Max DTL Sub ohm kit with both power and temperature control modes which are easy to control with the multi colour theme 0.96 inch colour tft screen. With new rounded shape and leather effect colours. Utilising the Smok T-Air Subtank which comes with two T mesh sub-ohm coils. It has a honeycombed style top airflow control for maximum adjustment.

Smok Morph 3 colours available:

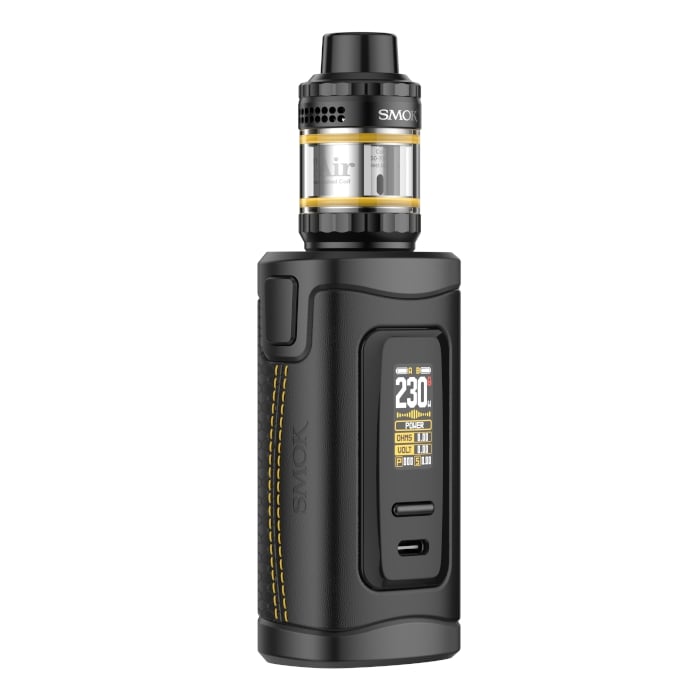

• Black

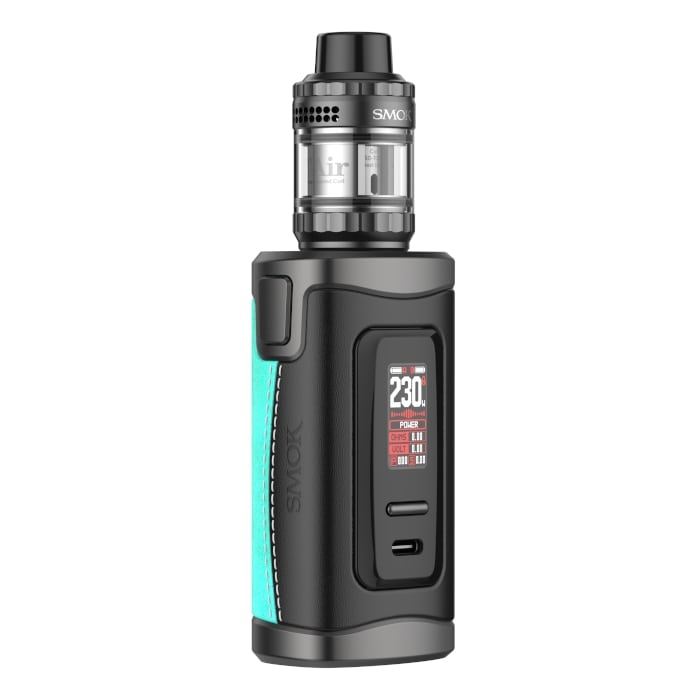

• Cyan

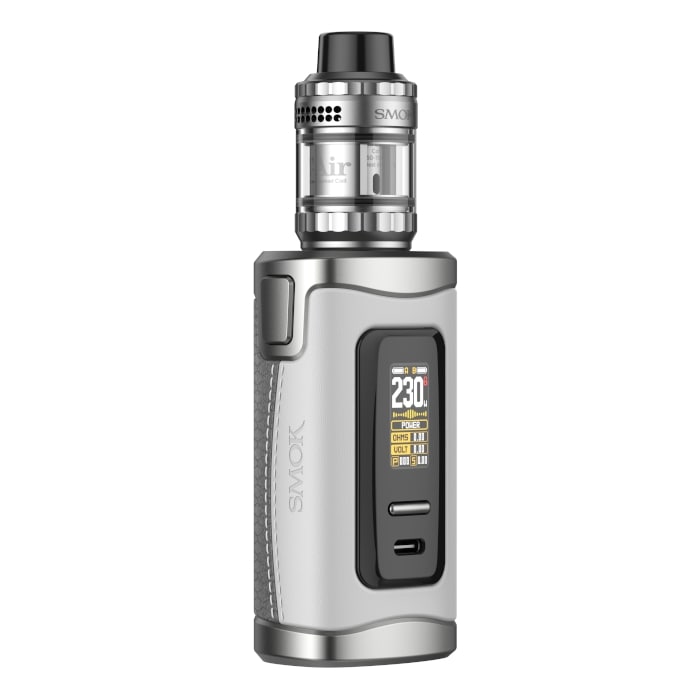

• White

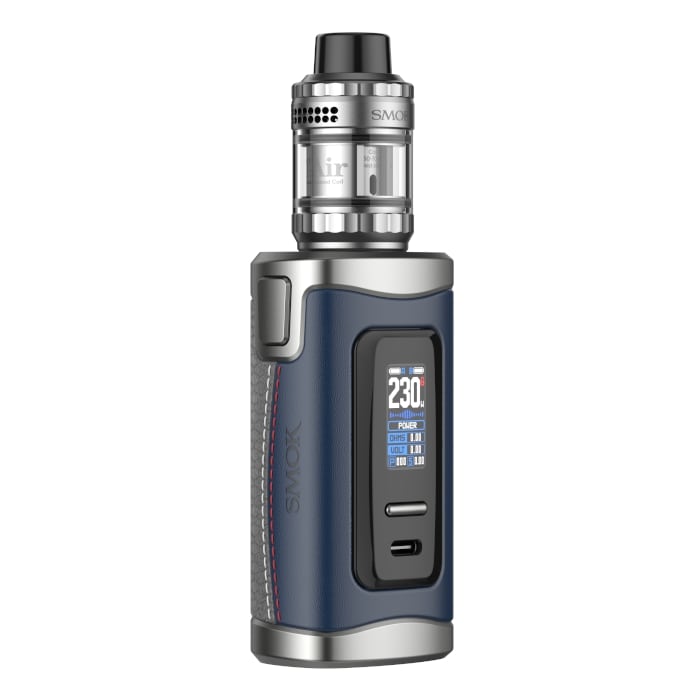

• Blue

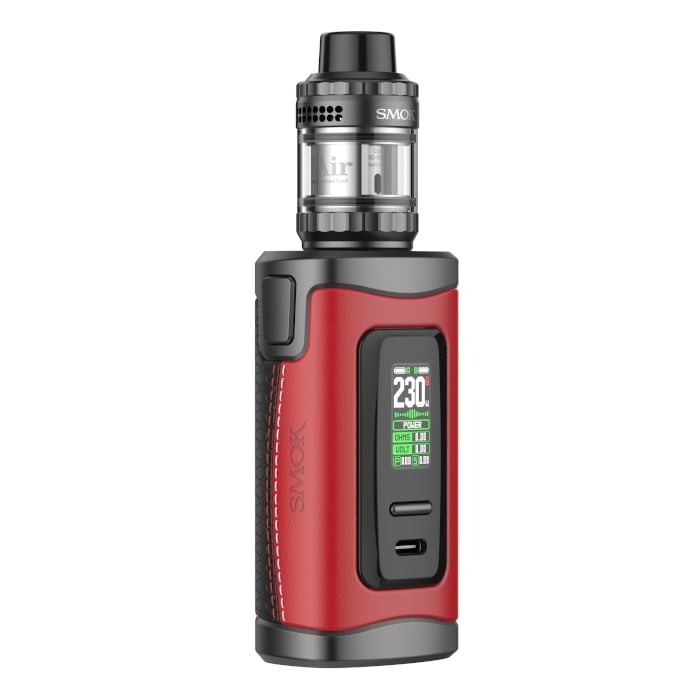

• Red

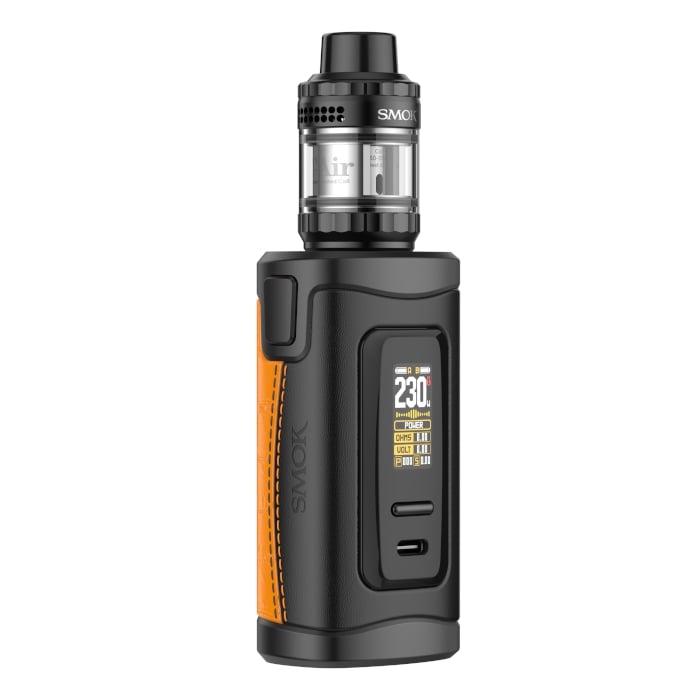

• Orange

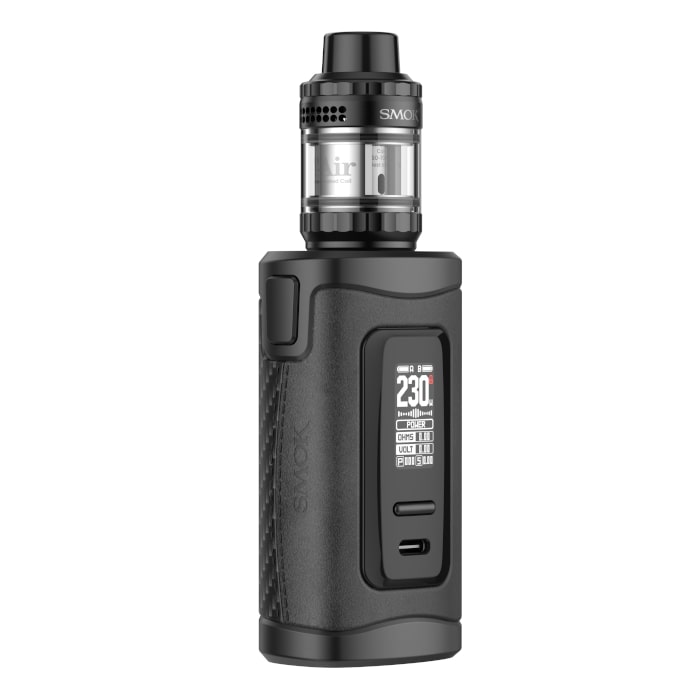

• Carbon Fibre

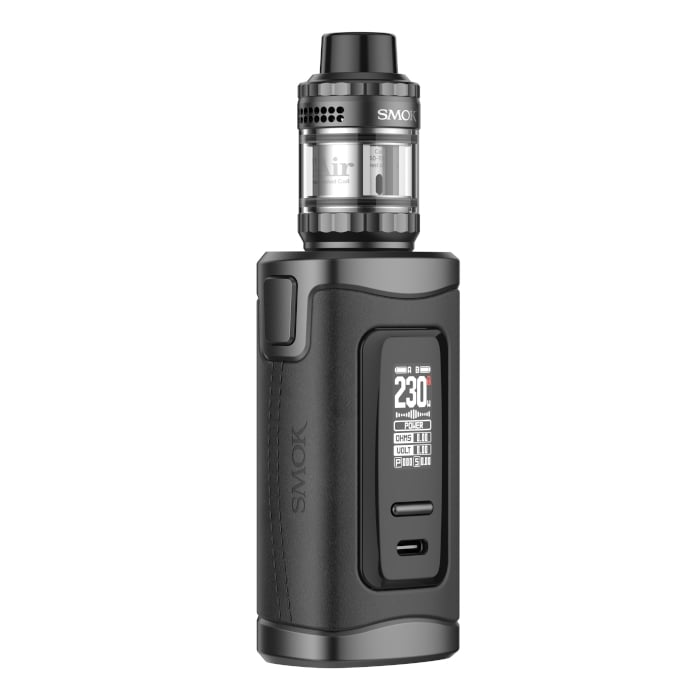

• Black Gunmetal

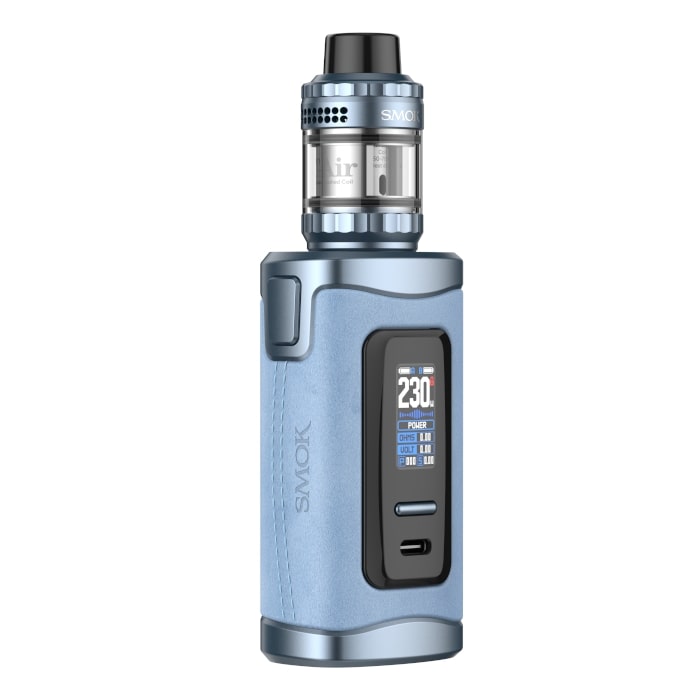

• Blue Haze

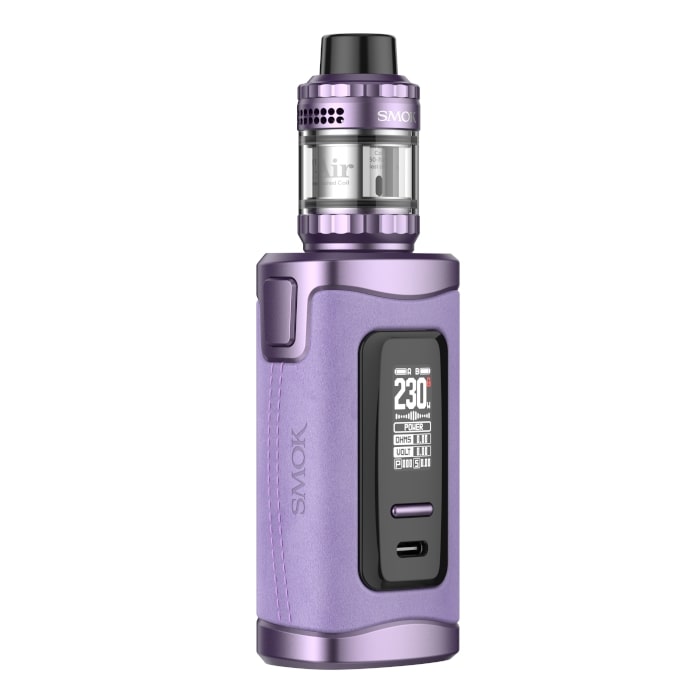

• Purple Haze
• Prism Rainbow

The Smok T-Air Subtank redefines DTL vaping with both vapour production and flavour while being close to leakproof with the top airflow design. Changing coils is simple with the new TA series push fit coils:

• TA 0.15Ω Dual Meshed - 40-60w (Best 55w) FeCrAl Alloy (kanthal)
• TA 0.2Ω Single 2-in-1 Mesh - 50-70w (Best 65w) FeCrAl Alloy (kanthal)
• TA 0.4Ω Single Meshed - 20-45w (Best 40w) FeCrAl Alloy (kanthal)

The tank is easily filled simply 1/4 turn the top cap to remove and refill.

Specifications:

Smok Morph 3 Mod

• Size: 46x31.8x88mm
• Weight: 124g
• Wattage range (VW): 5-230W
• Wattage range (TC): 10-230W
• Standby Current: <3000uA
• Output Voltage: 1V-8.2V
• Firing time: 0.001s
• Charging current, Max:2A
• Charging voltage:5V
• Resistance range (VW): 0.1ohm - 2.5ohm
• Temperature range: 200 F 600F/100C--315C

Smok T-Air Sub tank

• Material: Stainless Steel
• Weight: 65g
• Thread: 510
• Size: 26.6x51.7mm
• Capacity:2ml

Contents:

• 1 x Morph 3 mod
• 1 x T-Air Sub tank
• 1 x TA 0.2Ω Single 2-in-1 Meshed coil (Preinstalled)
• 1 x TA 0.4Ω Single Meshed coil
• 1 x usb C cable
• 1 x manual

Please note this device takes 2 x 18650 batteries (sold separately), we recommend you use a quality branded external charger like these XTar battery chargers.

How to use the T-Air Sub Tank

Notes on changing coils

The Smok T-air tank is easy to change coils as they are push fit

• Unscrew tank from the device
• Unscrew the base of the tank
• Pull out the old coil
• Prime the new coil (see notes on priming coils)
• Check the wattage rating on the coil
• Push new coil in making sure the littl tabs on the coil line up with the notches on the tank
• Screw tank back together
• Screw tank onto the device
• Fill tank with eliquid (See notes on filling your tank)
• Set device to wattage rating on the coil
• If coil has been primed you are ready to vape
• Enjoy

Notes on filling your Tank

The Smok T-Air Sub Tank has a simple fill method

• Unscrew the top cap on top of the tank
• Fill in one of the small holes on the side not the middle hole (this can be used for priming see below)
• Screw the lid back on
• Prime the tank. This is done if the coil is new or the tank tastes dry, flavourless or a little burnt tasting

Notes on Priming Coils

• Always prime your coils well when using for the first time especially
• Add 7 or so drops to the centre of the coil saturating the cotton inside (either before you install it in the tank or before you fill the tank by adding it via the centre hole between the fill hole on the sides)
• Reassemble the tank, if you have changed the coil make sure the coil is secured in place with the little tabs on the coils in the notches on bottom of the tank
• Add your chosen liquid to the tank leaving a small air bubble to ensure there is not too much pressure when the top cap is replaced.
• Take 5 or so long drags on your device without power (i.e. do not heat the coils)
• To be absolutely sure leave rested upright for a minute or so

For devices that use external cells.

It is not recommended that users charge their separate cell devices with a usb lead in to the device. These devices can be charged via usb as an emergency measure but is not recommended as a permanent solution. This is not a line to sell chargers there are significant reason why it should be done externally. Do not assume that it is safe. These batteries are not made for vaping and the manufacturer has no idea what cells you are using. Best to use the safer solution of a named quality charger.

Most vapes cannot balance charge more than one cell. One cell is charged and then after that the next cell is charged. All of the drain, excess heat and over use of that one cell causes strain on that 1st battery in the vape and ultimately leads to the demise of that 1 battery leading to the need of a new pair. If lucky it will just stop working if unlucky the cell may go into melt down

If your batteries are not the same age, i.e. the same amount of charges, the same amount of use and charged together for their whole lives then they are unbalanced. Meaning they cannot deliver the high output required by your vape. This will lead to low performance and low battery life.

External chargers let you monitor the charge going in to your cells. Good quality chargers will put what is needed in as opposed to as much as possible as fast as possible which can caused issues. A good charger will slow the charge rate down to recondition a bad cell. Internal charging will not do this. Using a good external charger could mean your batteries getting you through a day away from your charging equipment or not. Ultimately it is up to you how safe you want to be. Yes an external charger may sound like a hassle to you but it depends on the risks you want to take.

Please make sure your external cells have perfectly intact wraps on them If they have any of the metal showing under the wrap or the insulator on top please either re wrap or buy new cells PS This is not to scare you If you have any doubts about your charging routine just ask. Batteries get warm when they charge but if they are red hot then its time to look into it
